Kasco Home Series Diffused Aeration

Home Series Diffused Aeration

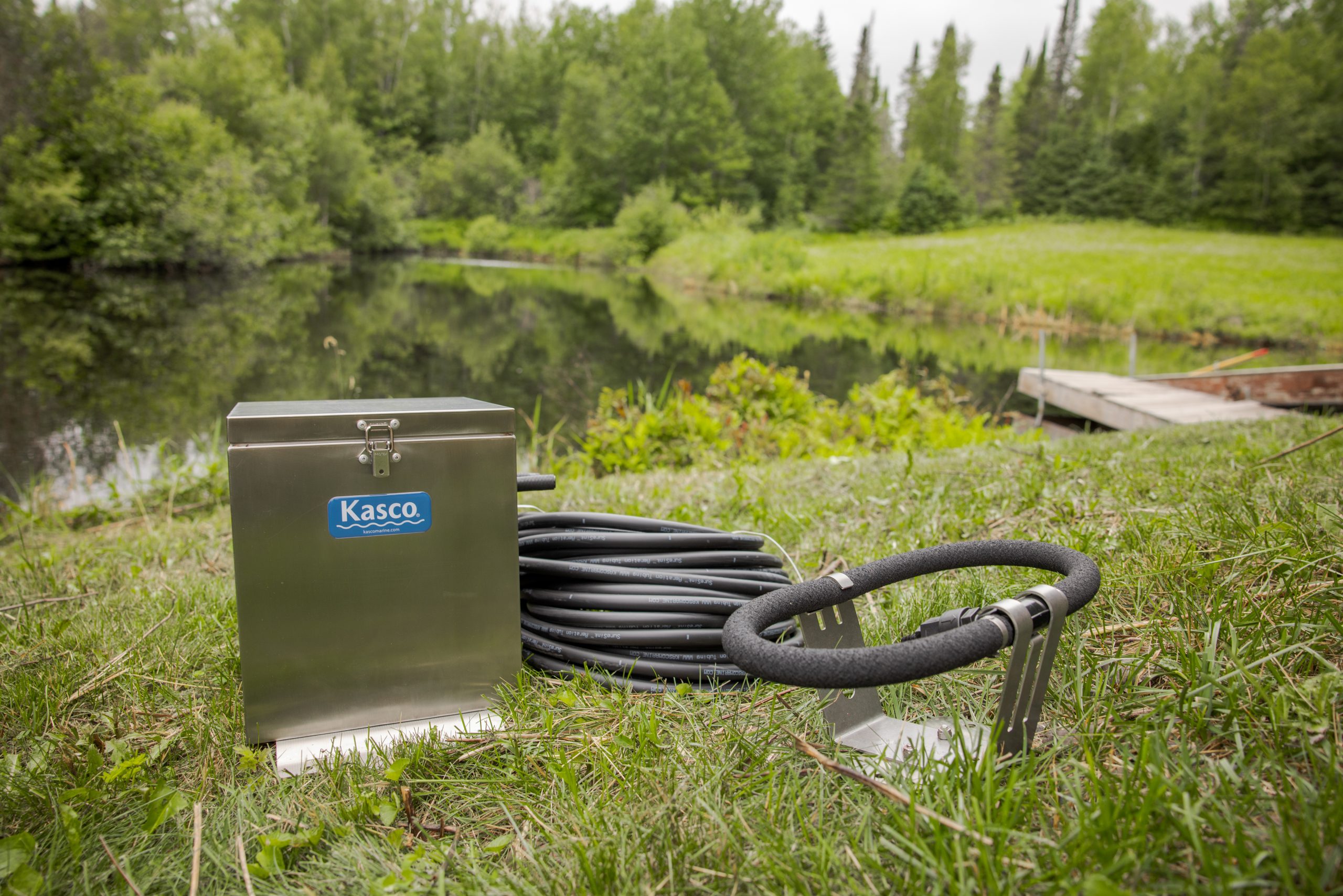

Kasco Home Series Diffused Aeration Systems are designed specifically for homeowners with small, residential ponds. Using a stainless steel cabinet, 1/4HP compressor, and a single-loop diffuser, these systems work great in ponds smaller than 2 acres with up to 20 ft. of depth.

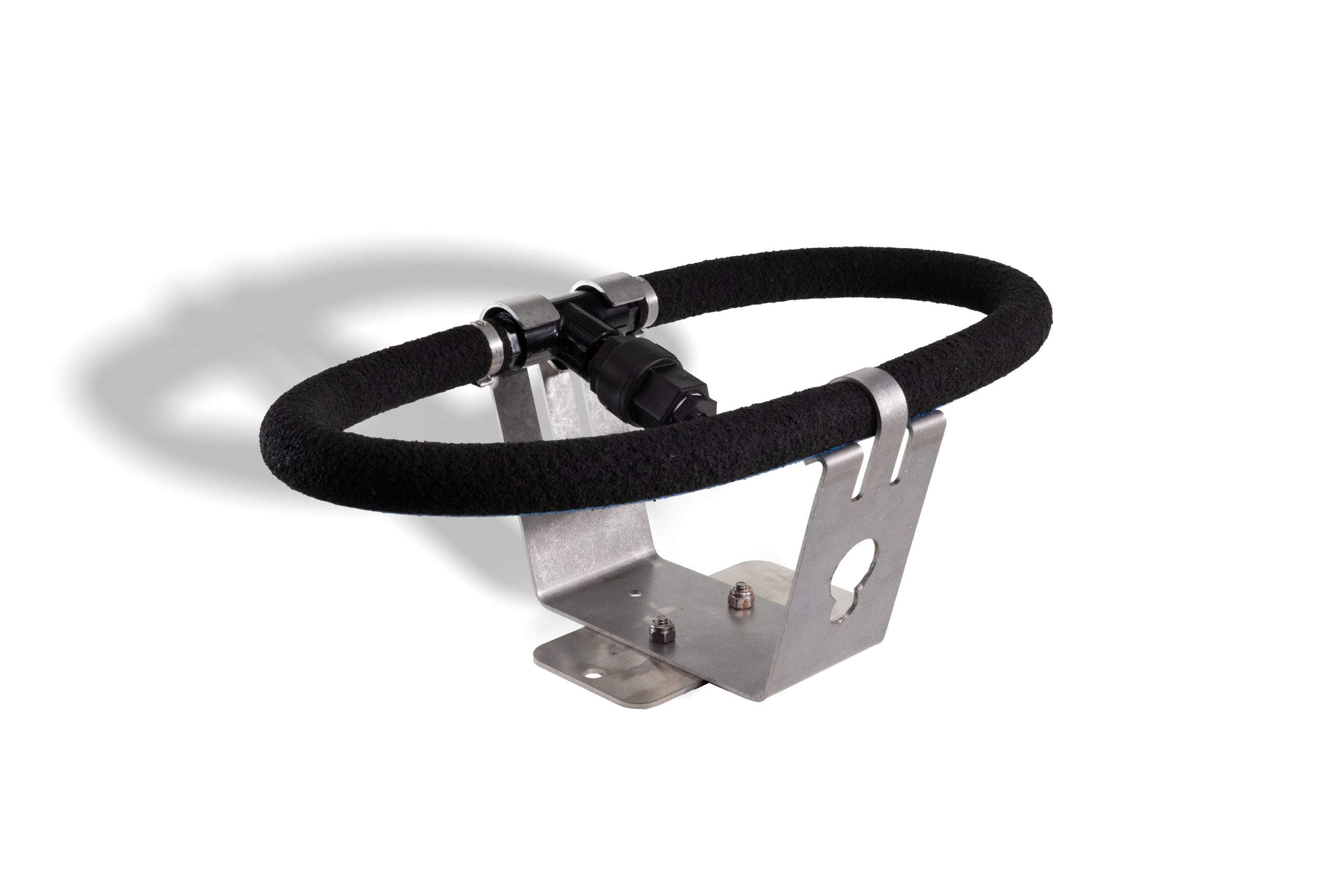

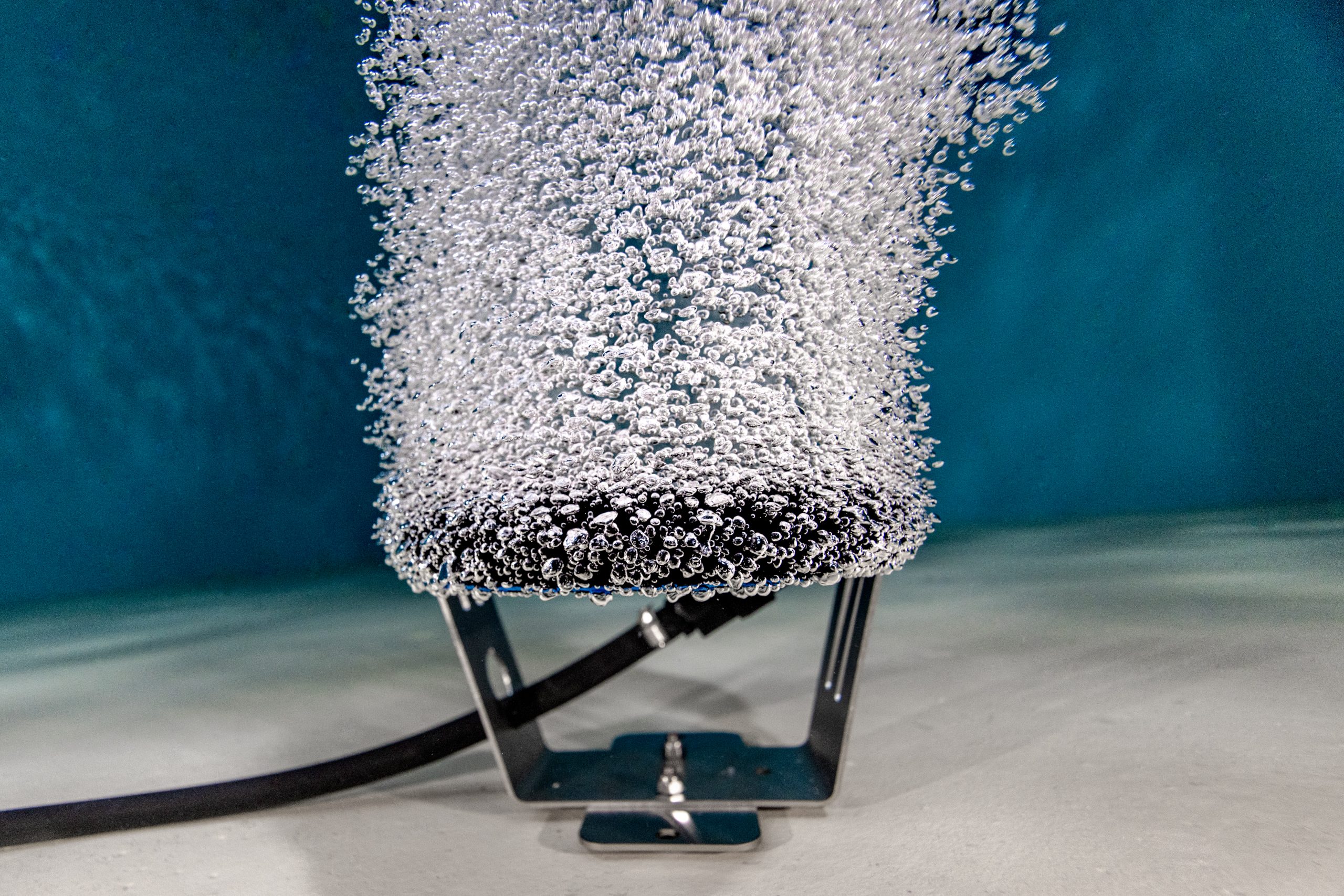

Home Series Diffused Aeration Systems provide beneficial water movement from the bottom up to improve water quality in backyard ponds. Using a shore-mounted compressor, air is continuously pumped through tubing lines that run to a single-loop diffuser on the pond bottom. The air is released upward, creating non-stop water movement and mixing, which is vital in eliminating and preventing weed overgrowth, algae, unpleasant odors, and other issues.

Warranty periods:

  • Diffuser: Lifetime
  • Cabinet: 2 years
  • Tubing: 15 years
  • Compressor Motor, Piston Cups, & Cylinders: 2 years



Kasco Home Series Diffused Aeration Flyer

Kasco Home Series Diffused Aeration Manual

Kasco Home Series Single Loop Diffuser Assembly Manual

Kasco SureSink Tubing Instructions

Kasco Home Series Mounting Bracket Instructions

Request a Quote

Description

Home Series Diffused Aeration

Designed specifically for homeowners with small, residential ponds, Kasco Home Series Diffused Aeration provides a simple, yet effective, way to help eliminate and prevent common pond issues like weed overgrowth, algae buildup, and unpleasant odors.

Common Applications

  • Backyard ponds & lakes

System Features:

  • Ideal for ponds smaller than 2 acres with up to 20 ft. of depth
  • Cabinet design ensures quiet operation
  • Reliable in tough, outdoor conditions
  • No electricity required in the water
  • Cleans and clarifies pond environment for an inviting, beautiful atmosphere
  • Designed for continuous water movement to eliminate and prevent weed and algae overgrowth, and other common water quality issues

Packages Include

  • 1 or 2 single-loop diffuser(s)

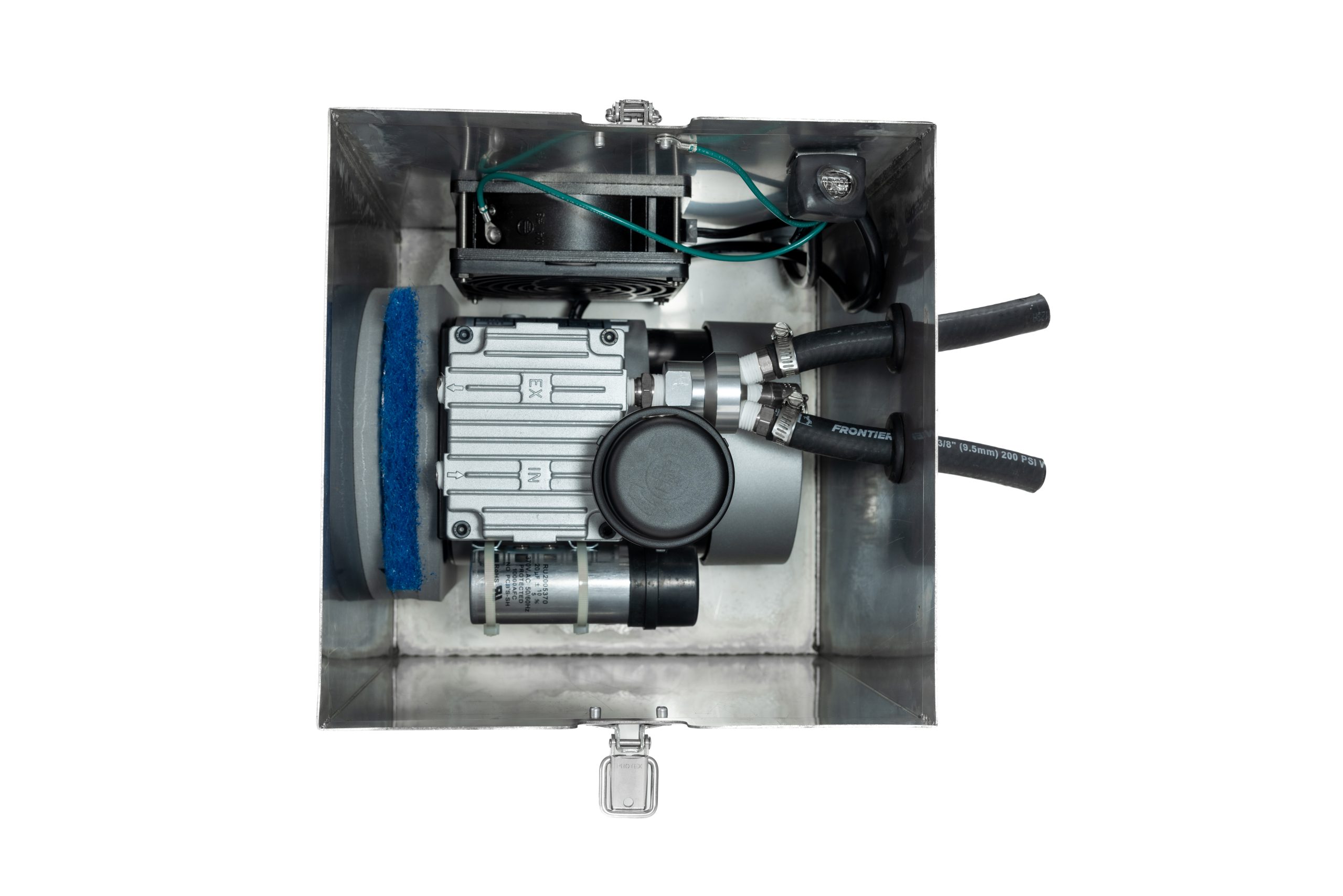

  • 1/4HP compressor

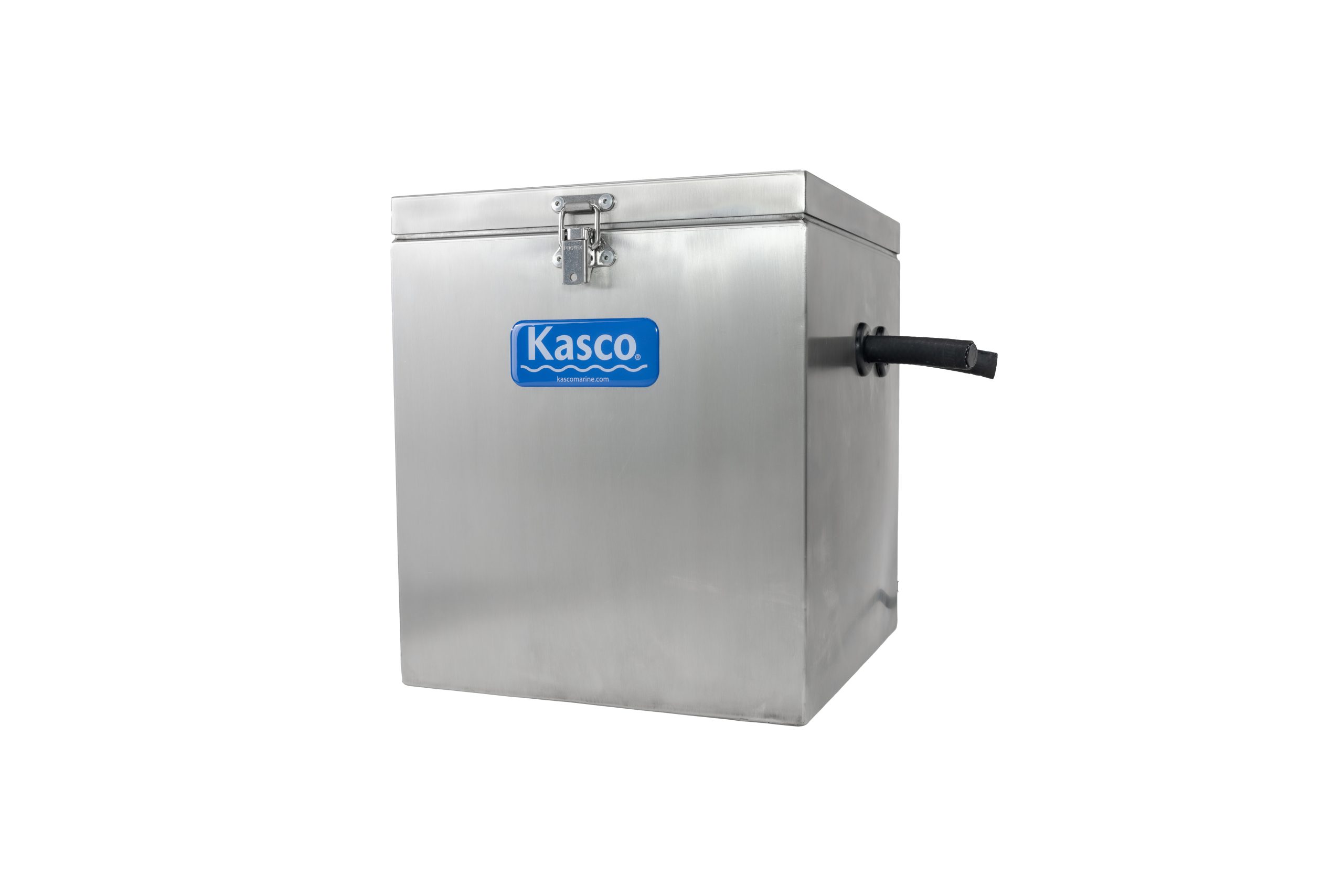

  • Stainless steel compressor cabinet
  • SureSink weighted tubing
  • Optional mounting bracket (purchased separately with part number 774440)
Part # Diffusers Compressor Voltage Weighted Tubing
DA1 1 1/4HP 120V (1) 100 ft. roll 3/8 in. tubing
DAH1 1 1/4HP 208-240V (1) 100 ft. roll 3/8 in. tubing
DA2 2 1/4HP 120V (2) 100 ft. roll 3/8 in. tubing
DAH2 2 1/4HP 208-240V (2) 100 ft. roll 3/8 in. tubing

Product Notes

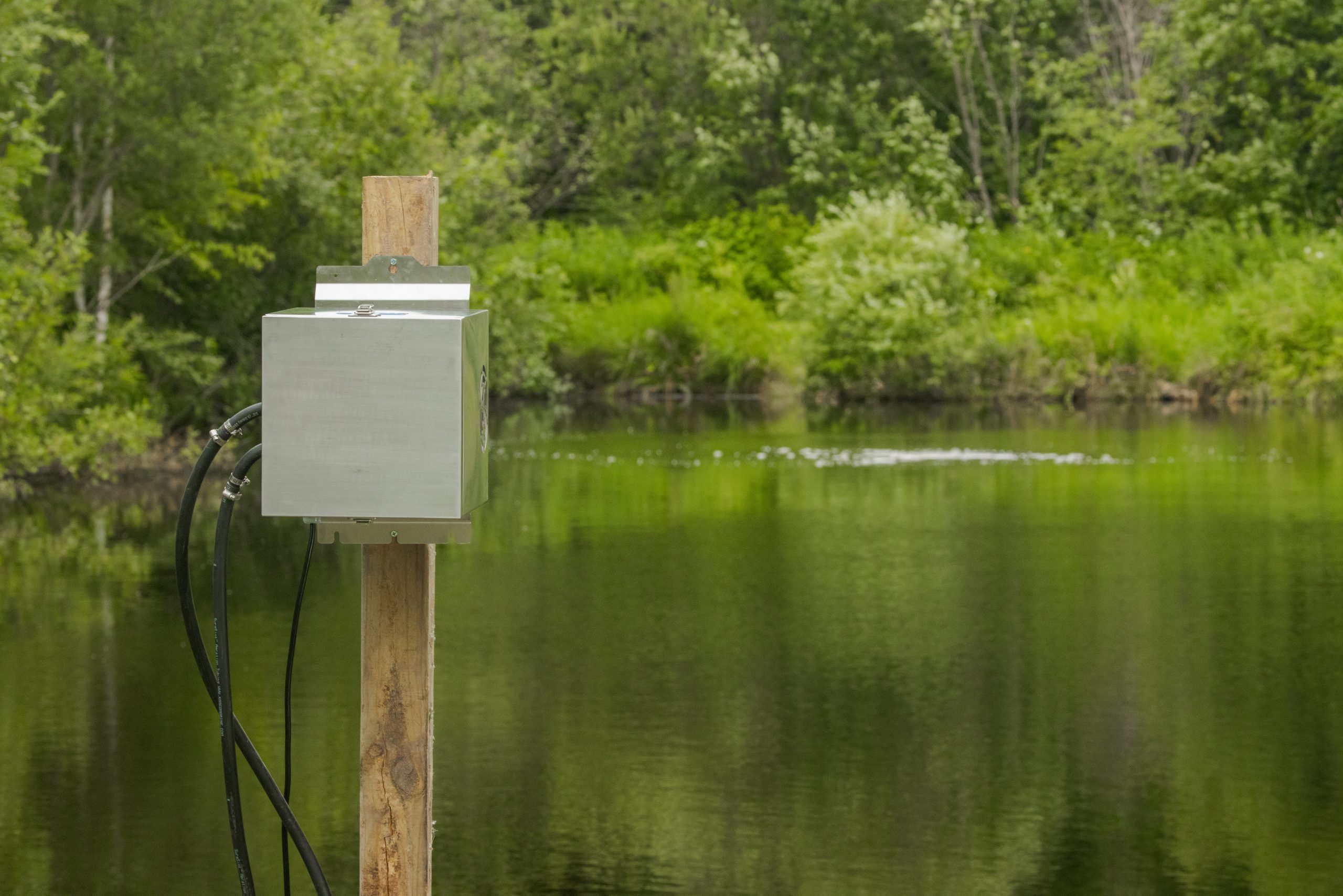

  1. Home Series cabinets are ground-mount standard. Mounting bracket available separately with part number 774440. Contact Bellus A.S. for details.
Home Series Diffused Aeration (DA1) Home Series Diffused Aeration (DA2)
Pond Size Pond Depth (ft.) Pond Depth (ft.)
1/4 Acre 6 – 8 3 – 6
1/2 Acre 9 – 12 6 – 8
1 Acre 13 – 20 9 – 12
2 Acres N/A 13 – 20
